Yandex Cloud · Network and Server Infrastructure
Location: ru-central1-b Resource type: Virtual Machines (Yandex Cloud)
RFC NOTE: This document describes the current state of the DSP infrastructure deployed in Yandex Cloud. It is intended for operational overview, capacity planning, and architectural reviews.
1. Assumptions
RFC NOTE: At the VM abstraction level, physical CPU topology is not exposed. For consistency across all environments, the following assumption is used throughout this document.
-
1 vCPU is treated as 1 CPU core
This assumption is standard for cloud-based infrastructure documentation and sufficient for capacity and scaling discussions.
2. Servers and Characteristics
| Server | Internal IP | Public IP | CPU (cores) | RAM (GB) | Disk (GB) |
|---|---|---|---|---|---|
kafka1 |
10.129.0.52 |
— |
2 |
8 |
300 |
kafka2 |
10.129.0.29 |
— |
2 |
8 |
300 |
kafka3 |
10.129.0.22 |
— |
2 |
8 |
300 |
kafka4 |
10.129.0.51 |
— |
2 |
8 |
300 |
workers-dsp |
10.129.0.26 |
51.250.18.110 |
8 |
16 |
30 |
workers-dsp-eu |
10.129.0.34 |
51.250.30.85 |
2 |
2 |
20 |
www-dsp |
10.129.0.16 |
51.250.31.198 |
4 |
28 |
200 |
prometheus |
10.129.0.28 |
158.160.15.208 |
2 |
4 |
30 |
sentry |
10.129.0.9 |
158.160.80.180 |
4 |
16 |
150 |
mirrormaker2 |
10.129.0.21 |
158.160.91.70 |
2 |
8 |
60 |
mirrormaker2-eu |
10.129.0.61 |
89.169.188.210 |
2 |
8 |
30 |
kafka-replicator-ca-1 |
10.129.0.19 |
84.252.136.108 |
2 |
2 |
20 |
cl1ls8rfuiua0gc2nrsa-ylah |
10.129.0.55 |
62.84.122.58 |
8 |
16 |
64 |
RFC NOTE: Kafka brokers do not have public IP addresses by design. All inter-broker and client communication is performed over the internal VPC network.
3. Aggregate Resources
-
Total servers: 13
-
Total CPU cores: 42
-
Total RAM: 132 GB
-
Availability zone: ru-central1-b
RFC NOTE: Aggregate values are provided for high-level capacity estimation. They must not be interpreted as a single failure domain or a shared resource pool.

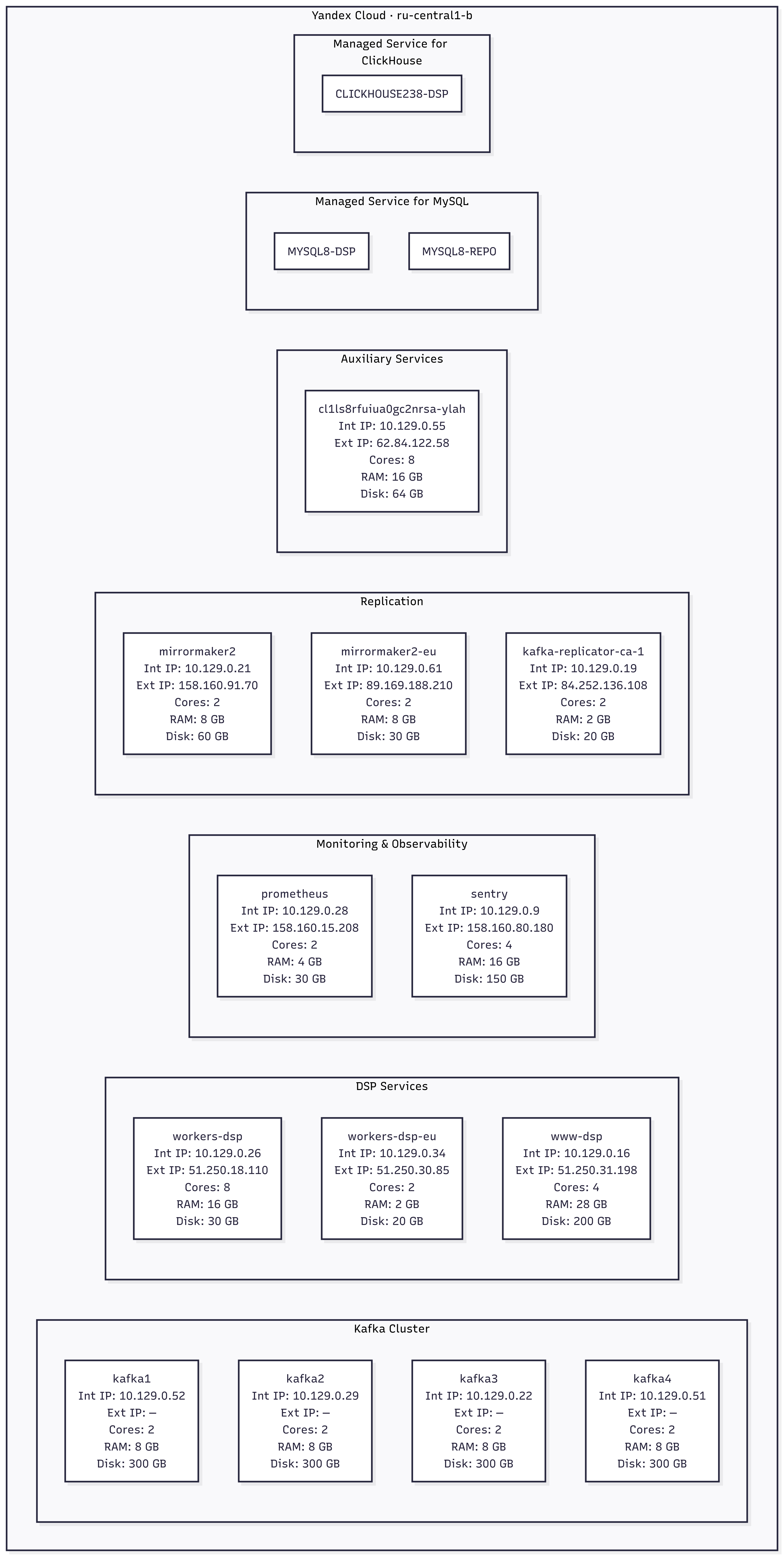

4. Infrastructure Diagram
The diagram below illustrates the Yandex DSP infrastructure, including managed services.
RFC NOTE:
This AsciiDoc document is located under /architecture.
The Mermaid diagram is stored under /architecture/diagrams/mermaid/
and serves as a visual complement to the tabular data above.
5. Managed Data Services
RFC NOTE: The following components are provided as managed services by Yandex Cloud. They are not represented as virtual machines and therefore are excluded from the server inventory table.
5.1. MySQL
-
Service: Managed Service for MySQL
-
Version: 8.0
-
Clusters:
-
MYSQL8-DSP (PRODUCTION)
-
MySQL8-REPO (PRODUCTION)
-
5.2. ClickHouse
-
Service: Managed Service for ClickHouse
-
Version: 24.8.x
-
Clusters:
-
CLICKHOUSE238-DSP (PRODUCTION, Active)
-
CLICKHOUSE248-SSP (PRODUCTION, Stopped)
-
